Aluminum Billet Series 2000
Aluminum Billet Series 2000
Aluminum Billet Series 2000

Aluminum Billet Series 2000

Production stages of aluminum billets

1. Pouring aluminum metal into special containers

2. Direct melting of metals in thermal furnaces

3. Transfer of molten metal by special transmission and distribution channels to the degassing section

4. Entry of degassed metal into the filtration stage

5. Capture all aluminum impurities by powerful and intelligent filters

6. Entry of molten material into molds predetermined by the DC system

7. Sending pure metal to the solidification unit

8. Final control and packaging



Mechanical Property

ALUMINUM
ALLOY
GradeNormal
Temper
TemperTensile Strength
N/mm²
Yield Strength
N/mm²
Elongation%Brinell Hardness
HB
PlateBar
1XXX1050O,H112,HO783440-20
1060O,H112,HO703043-19
Al-Cu
(2XXX)
2019O,T3,T4,T6,T8T85145035010--
2024O,T4T44703252017120
Al-Mn
(3XXX)
3003
O11040303728
3004O,H112,HO18070202245
Al-Si (4XXX)4032O,T6,T62T6380315-9120
Al-Mg
(5XXX)
5052O,H112,HH34260215101268
5083O,H112,HO290145-20-
Al-Mg-Si
(6XXX)
6061O,T4,T6,T8T6310275121595
6063O,T1,T5,T6,T8T518514512-60
Al-Zn-Mg
(7XXX)
7003T5T531525515-85
7075O,T6T6570505119150

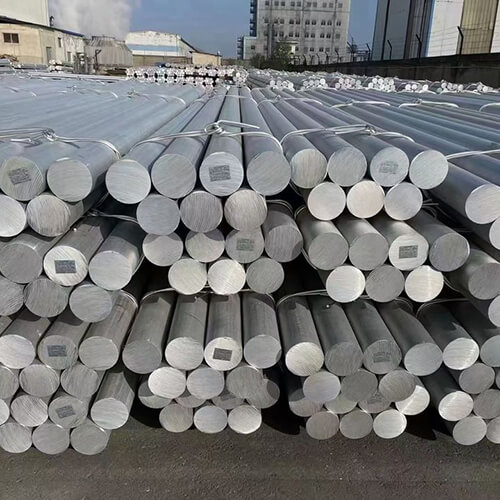

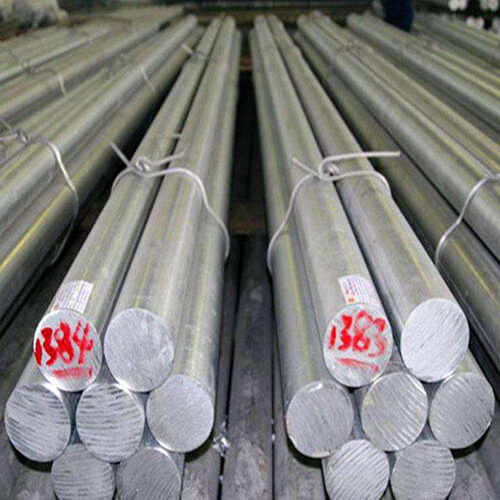

What is an aluminum billet?

It is one of the types of products whose raw materials are made of aluminum.

Aluminum billets are produced in the form of semi-made castings.



Application of aluminum billets:

It is mainly used in aluminum extrusion industry and is produced by continuous casting or DC method.

Aluminum extrusion is a method in which aluminum billets are converted to profiles with a specific surface.

In the extrusion method, aluminum metal enters the special mold with hydraulic pressure and after cooling, it becomes the desired product. The application of these profiles is different and they are mostly used in the construction industry.
