It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously dipped in the bath with melted zinc to make galvanized steel plate; Alloyed galvanized steel sheet.

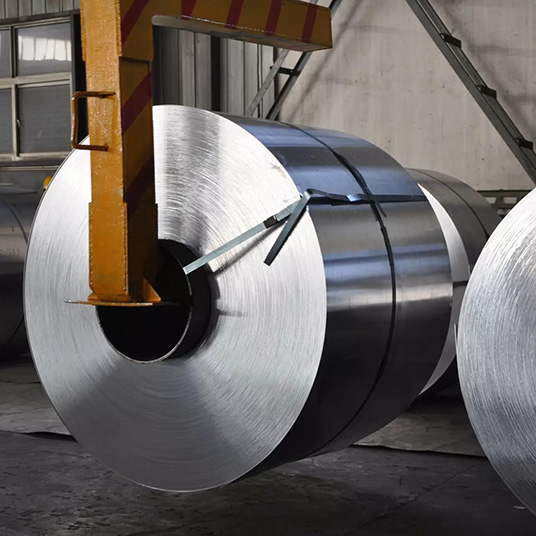

Galvanized coil, a thin steel sheet that is dipped into the molten zinc bath to make its surface adhere to a layer of zinc. It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously dipped in the bath with melted zinc to make galvanized steel plate; Alloyed galvanized steel sheet.
This kind of steel plate is also made by hot dip method, but it is heated to about 500 ℃ immediately after being out of the tank, so that it can form an alloy coating of zinc and iron. This galvanized coil has good coating tightness and weldability.
Product parameters
| Product name | Galvanized coil | ||||||
| Thickness | 0.3-100mm | ||||||
| Width | 600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc. | ||||||
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc. | ||||||
| Quality test | we can offer MTC(mill test certificate) | ||||||
| Stock or not | enough stock | ||||||
| Hardness | Annealed, 1/16 Hard, 1/8 Hard, 1/4 Hard, 1/2 Hard, Hard | ||||||
| Container size | 20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High) | ||||||
| 40ft GP: 12032mm(Length)x2352mm(Width)x2393mm(High) | |||||||
| 40ft HC: 12032mm(Lengh)x2352mm(Width)x2698mm(High) | |||||||
Product Description
For galvanized coils, the sheet steel is immersed in a molten zinc bath to make a sheet of zinc coated on its surface. It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously immersed in a plating tank with zinc melted to make galvanized steel plate; alloyed galvanized steel plate. This kind of steel plate is also manufactured by hot dip method, but immediately after being out of the tank, it is heated to about 500 ℃ to form an alloy coating of zinc and iron. This galvanized coil has good paint adhesion and weldability.
(1) normal spangle coating
During the normal solidification process of the zinc layer, the zinc grains grow freely and form a coating with obvious spangle morphology.
(2) minimized spangle coating
During the solidification process of the zinc layer, the zinc grains are artificially restricted to form the smallest possible spangle coating.
(3) spangle-free spangle-free coating
The coating obtained by adjusting the chemical composition of the plating solution has no visible spangle morphology and a uniform surface.
(4) zinc-iron alloy coating zinc-iron alloy coating
Heat treatment of the steel strip after passing through the galvanizing bath to form an alloy layer of zinc and iron throughout the coating. A coating that can be painted directly without further treatment, other than cleaning.
(5) differential coating
For both sides of galvanized steel sheet, coatings with different zinc layer weights are required.
(6) Smooth skin pass
Skin-passing is a cold-rolling process performed on galvanized steel sheet with a small deformation amount for one or more of the following purposes.
Improve the surface appearance of galvanized steel sheet or be suitable for decorative coating; make the finished product not see the phenomenon of slip line (Lydes line) or crease caused by processing to minimize temporarily, etc.
Advantages of galvanized steel coil:The surface oxidation resistance is strong, which can enhance the corrosion resistance and penetration ability of the parts For example, the back of the air conditioning indoor machine, the back of the cabinet machine, the internal parts, the outer shell and the interior of the outdoor machine are made of galvanized sheet.These parts of the working environment will encounter rain, sun, hot gas corrosion and other strong oxidation conditions, so often use galvanized sheet.
